Wireless System Components

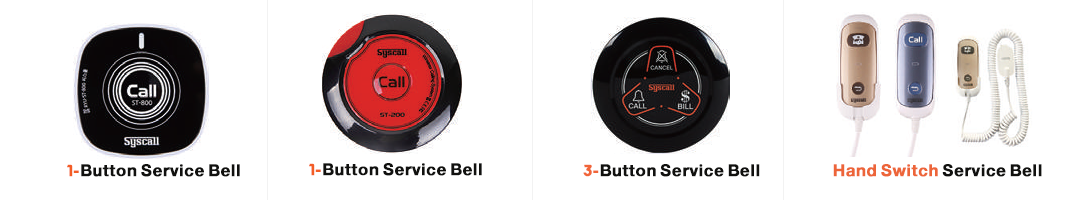

TRANSMITTER (Call Button):
- ▶ Frequency: 433.92Mhz
- ▶ Modulation: FSK
- ▶ Water resistant, High intensity LED
- ▶ Power: DC 3V Coin Battery: CR2025/2032
- ▶ Expected Battery Life: Approx. calling 40,000 times (It may vary depending on weather or environmental conditions.)
- ▶ Range of Distance: Approx. 50m, open air. (It may vary depending on weather or environmental conditions. You can increase the range of distance with Signal Enhancer.)
- ▶ Dimensions: 54*54*11(H)mm
- ▶ Net Weight: 26gr. (battery included)

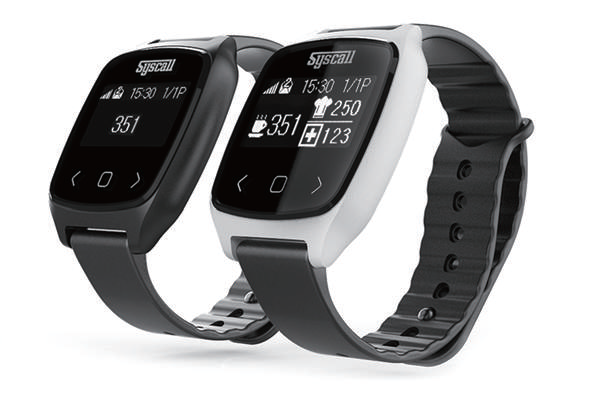

RECEIVER (Wristwatch):
- Supports All SYSCALL Call button transmitters & Server paging transmitters
- 3 signals, 3-digit display
- Priority Function for VIPs or Kitchen
- Cancel Bell Registration
- Multiple Bell registration (up to 450)
- Sound, Vibration, Sound/Vibration selection
- Frequency: 433.92Mhz
- Modulation: FSK
- Receive Sensitivity -105dBm
- Power: DC3.7V/320mA
- Recharge time: 1 hour
- Expected Battery Life: 48 hours standby
- Low battery alert
- Dimensions: 45mm x 56mm x 11mm
- Net Weight: 42gr

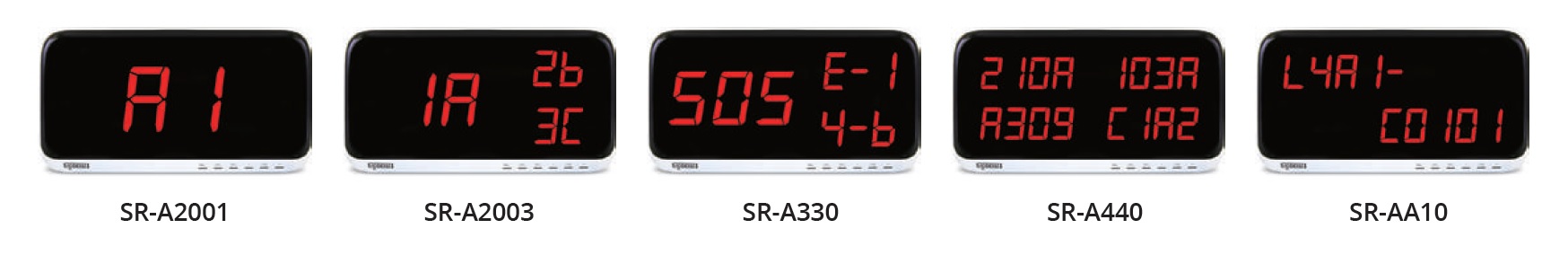

Display Panel:
Features:PC connection - Memorizes 10 Signals - Displays Prior Calls - Data Copy via Cable
- Multiple Bell Registration, Cancel Bell Registration
- PC connection: RS-232 (cable sold separately)
- Data copy with data cable (cable sold separately)
- Bell Test Mode
- Fast signal reaction speed (0.05 seconds)
- Display: LED Screen
- Frequency: 433.92Mhz
- Modulation: FSK
- Memory capacity: Register up to 450 Call bells
- Power Source: AC100~240V 60/50Hz - 12V 1A
- Dimensions: 280mm x 145mm x 40mm
- Net Weight: 600gr

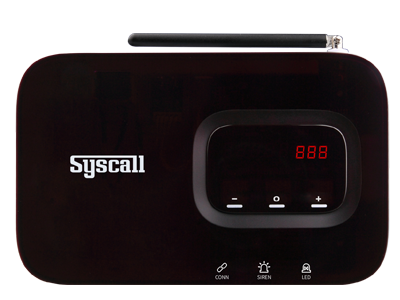

Programmable Repeater:
- Effective to enhance weak signal
- 450 Call Bells can be registered
- Programmable
- Range of distance: Approx. 50m, open air (It may vary depending on weather or environmental conditions.)
- External Antennas
- Frequency: 433.92Mhz
- Modulation: ASK
- Power Source: 220V 60/50Hz, 12V 1A
- Dimensions: 159mm x 99mm x 23mm
- Net Weight: 150gr.
- Guaranty: 12 months
- Compatibility: with all SysCall transmitters
