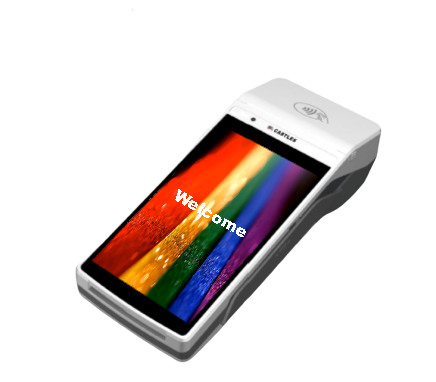

Castles Technology’s newly designed SATURN1000F2 next generation mobile device offers multifunctional capabilities and optimizes the checkout process for your business. It comes with several optional features including 4G LTE/3G, WLAN, Bluetooth, microphone, rear camera, barcode reader, and stylus. The SATURN1000F2 is based on a secure Android platform and has integrated contactless reader function with a 5.5” full touchscreen. The SATURN1000F2 is an extremely easy, safe and secure for merchants looking for a next generation payment device.
- PCI PTS 6.x.
- Mass Storage Support.
- High security processor.
- 5.5” full color capacitive touch.
- Various Communication Interface.
- Functional (Full multi-application capability).
- Allows Android open architecture OS.
- Dual SIM.
- Optional front camera, 2D barcode reader and fingerprint reader.
Castles Technology’s newly designed SATURN1000F2 next generation mobile device offers multifunctional capabilities and optimizes the checkout process for your business. It comes with several optional features including 4G LTE/3G, WLAN, Bluetooth, microphone, rear camera, barcode reader, and stylus. The SATURN1000F2 is based on a secure Android platform and has integrated contactless reader function with a 5.5” full touchscreen. The SATURN1000F2 is an extremely easy, safe and secure for merchants looking for a next generation payment device.
- PCI PTS 6.X
- EMV 4.X Level 1 & 2
- MasterCard PayPass
- Visa payWave
- JCB (J/Speedy)
- American Express (Express pay)
- EMC, UL, CE, FCC, BSMI, RoHS
| DEVICE | DESCRIPTIONS |
| Processor | Application Processor: HighSpeed Octa-Core 1.8GHz Processor plus Secure MCU Secure Processor: ARM11 Secure MCU |
| Operating System |
Android 9.0 |
| Memory |
Application Processor: Flash: 8 GB Up to 16GB RAM: 1 GB Up to 2GB |
| Display | 5.5" Color TFT LCD (1280x720 pixels), Capacitive multi-touch |
| Card Readers |
Magnetic Strip: ISO 7810, 7811 & 7813 Triple track, Bi-Directional Smart Card: 1.8V/3V/5V smart card, ISO 7816 Class A,B and C Contactless: ISO 18092 NFC & Mifare® & Sony® Felica, ISO 14443 Type A, B Certified, Working frequency 13.56 MHZ |
| SAM | 2 SAM slots (Up to 4) |
| Interface Connection | Micro-USB OTG |
| Communication
Interface (Integrated in AP Processor) |
GSM: 4G LTE - 3G Quad-Band GSM Bands: 850, 900, 1800 and 1900 MHz Wi-Fi: 802.11 b/g/n, 2.4GHz (Optional) Bluetooth: BT 4.0 + BLE (Optional) |
| GPS | Yes |
| Keypad |
Virtual Keypad (Support PIN on Touch) |
| Printer |
Thermal Type: Paper Width 57mm, Paper roll diameter: 40mm Printer Speed: 100mm/sec (+25 Line/Sec) |
| Power |
Battery: 6000mAh/3.7V Li-ion Rechargeable Battery Cradle: DC 5V / 2A via micro-USB portector |
| Audio | Speaker and 4 Pole Audio Jack|Microphone |
| Camera | Yes (Optional) |
| Barcode reader | Yes (Optional) |
| Certifications |
Security & Payment: PCI PTS|EMV L1 L2|MC-PTS|TQM|PBOC L1 L2|PayWave|PayPass|AMEX|JCB. Safety, EMC: CE|FCC|BSMI|RoHS |
