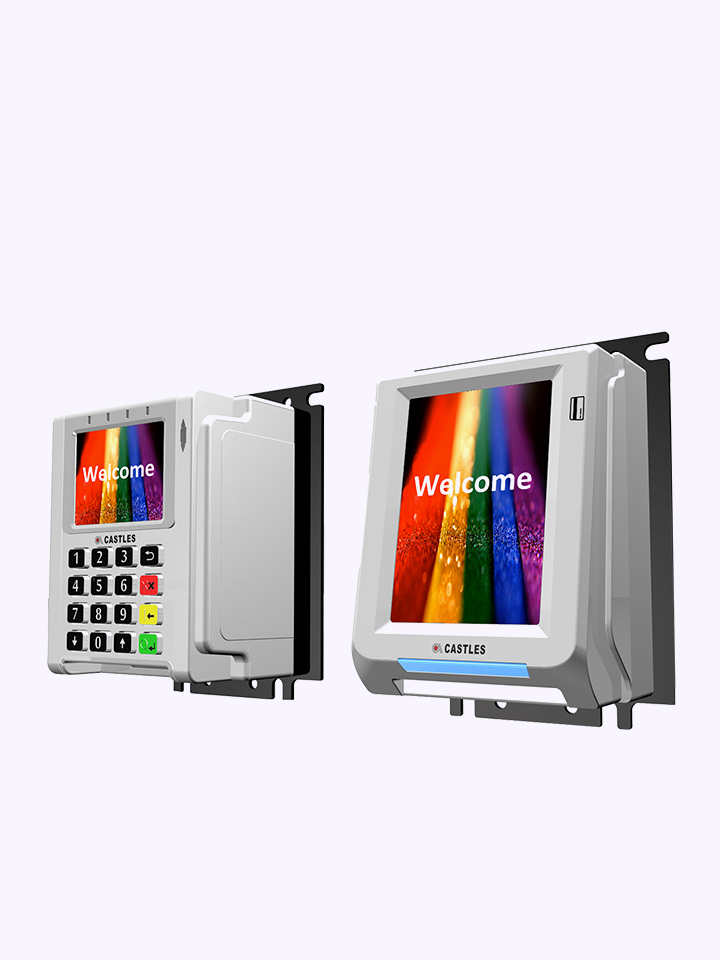

Castles Technology’s newly designed MARS1000 UPT device offers multifunctional capabilities for your unattended payment needs such as vending, ticketing, multimedia kiosks, public transportation, laundromats and any other self service solutions. The MARS1000 is based on a secure Linux platform and has integrated PIN pad, magnetic stripe, chip and contactless card reader functions. The MARS1000 is a perfect, durable and cost effective device for any unattended business needs.
- Secure and high performance MCU.
- Secure Linux operating system.
- 3.5” color display with touch screen or 2.4” color display with physical keypad.
- PCI PTS v 4.x, EMV L1 and EMV L2 certifications.
- Built- in magnetic stripe, contact and contactless readers.
- Supports ISO 14443 Type A, B, ISO 18092 NFC and Sony FeliCa.
- Supports RS232, USB, Ethernet and GPRS/3G.
- Supports MDB/EXE interface.
Castles Technology’s newly designed MARS1000 UPT device offers multifunctional capabilities for your unattended payment needs such as vending, ticketing, multimedia kiosks, public transportation, laundromats and any other self service solutions. The MARS1000 is based on a secure Linux platform and has integrated PIN pad, magnetic stripe, chip and contactless card reader functions. The MARS1000 is a perfect, durable and cost effective device for any unattended business needs.
- EMV Level 1 & 2
- PCI PTS v 4.x
- MasterCard PayPass
- Visa payWave
- JCB (J/Speedy)
- American Express (Express pay)
- EMC, UL, CE, FCC, BSMI, RoHS
| DEVICE | DESCRIPTIONS |
| Processor | ARM11, 32 bits high performance secure Microprocessor, @ 400MHZ |
| Memory |
Internal Memory: Flash: 128 MB DDR RAM: 64 MB (Up to 256 MB/ 128 MB) Extension Memory: Micro SD Socket up to 32GB |
| Display |
2.4” TFT LCD 240(RGB) X 320 with Backlight, 3.5” TFT 320X480 Color Display, with PCT Touch panel |
| Card Readers |
Magnetic Strip: ISO 7810, 7811 & 7813 Triple track, Bi-Directional Smart Card: 1.8V/3V/5V smart card, ISO 7816 Class A,B and C Contactless: ISO 18092 NFC & Mifare® & Sony® Felica, ISO 14443 Type A, B Certified, Working frequency 13.56 MHZ |
| SAM | 2 SAM slots |
| Crypto | TRNG, DES, T’DES, AES, RSA, MK/SK, DUKPT, T’DUKPT |
| Keypad |
Up and Down navigator Standard 15 keys EMV keypad 6 programmable function keys Backlight keys |
| Communication Interface |
GPRS (Dual SIM) 3G Optional RS232: (Communication speed: up to 115200bps) USB: OTG *1, USB Host *2 |
| Indicator | 4 LED’s & Audio Buzzer |
| Printer |
Thermal Type: Paper Width 57mm, Paper roll diameter: 40mm Printer Speed: 100mm/sec (+25 Line/Sec) |
| Certifications |
EMV L1 L2, TQM, Visa payWave, MasterCard PayPass, AMEX ExpressPay, JCB J/Speedy. Safety: CE, FCC, BSMI, RoHS |
