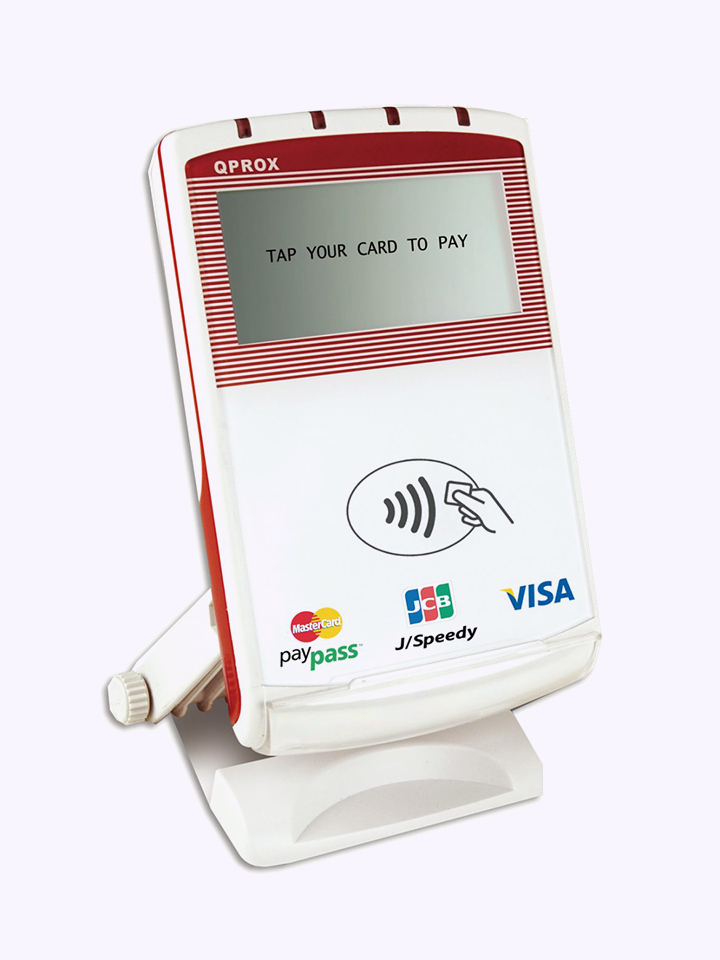

The QP3000S Contactless Reader is elegantly designed for your contactless needs. This easy to use device makes it very simple for POS and ECR integration and provides an economical and secure upgrade path for existing systems. An optional display stand enables both horizontal and upright countertop positioning of this high quality attractive device. QP3000S is EMV compliant and supports contactless payment applications. QP3000S supports Mifare® cards and ISO 14443 Type A and B. The reader is certified with Visa payWave, MasterCard PayPass, ExpressPay and J/Speedy.
- Easy POS and ECR Integration.
- 180 Degree adjustable foot stand.
- Up to 4 SAM expansive memory for multi-app support.
- 32 bits high security processor.
- Full speed USB or RS232 serial connection.
- Designed and tested to perform under extreme conditions.
The QP3000S Contactless Reader is elegantly designed for your contactless needs. This easy to use device makes it very simple for POS and ECR integration and provides an economical and secure upgrade path for existing systems. An optional display stand enables both horizontal and upright countertop positioning of this high quality attractive device. QP3000S is EMV compliant and supports contactless payment applications. QP3000S supports Mifare® cards and ISO 14443 Type A and B. The reader is certified with Visa payWave, MasterCard PayPass, ExpressPay and J/Speedy.
- EMV Level 1 & 2
- MasterCard PayPass
- Visa payWave
- JCB (J/Speedy)
- American Express (Express pay)
- EMC, UL, CE, FCC, BSMI, RoHS
| DEVICE | DESCRIPTIONS |
| Processor | 32-bit Secure Microprocessor |
| Memory |
Internal Memory: Flash: 2M (Up to 8M) SRAM: 1M (Up to 4M) |
| Display | 128 x 64 Backlit Graphical LCD |
| Card Readers |
Contact-SAM Card: ID-0000, 4 SAM Slots Contactless: ISO 18092 NFC & Mifare® & Sony® Felica, ISO 14443 Type A, B Certified, Working frequency 13.56 MHZ |
| Indicator | 4 LED’s & Audio Buzzer |
| Power Supply |
Adaptor: DC 9V/1A USB: 5V/1A |
| Communications Interface |
RS232: Speed Up to 115200bps USB: Speed Up to 12Mbps |
| Dimensions | 135 mm x 90.3 mm x 23.5 mm |
| Weight | 220g |
| Certifications |
EMV L1 L2, TQM, Visa payWave, MasterCard PayPass, AMEX ExpressPay, JCB J/Speedy. Safety: CE, FCC, BSMI, RoHS |
