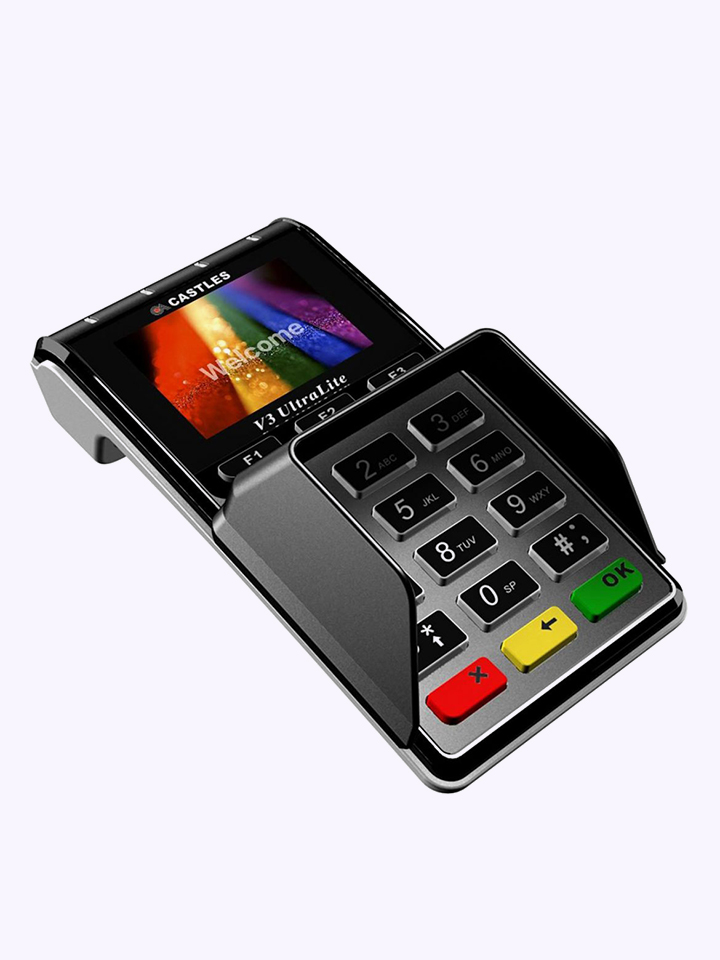

Castles Technology’s newly designed VEGA3000 UltraLite PCI 5.x certified device offers optimal checkout process for your business. The VEGA 3000 UltraLite comes with a 2.4″ color display, it has integrated contactless reader function and is based on a secure Linix platform. The VEGA3000 UltraLite is a perfect, cost effective device to enhance your payment system.
- PCI PTS 5.x, CL/NFC.
- Designed for mobility and tested for extreme handling.
- Secure Linux with industry proven feasible SDK.
- Received most of the global contactless certifications.
Castles Technology’s newly designed VEGA3000 UltraLite PCI 5.x certified device offers optimal checkout process for your business. The VEGA 3000 UltraLite comes with a 2.4″ color display, it has integrated contactless reader function and is based on a secure Linix platform. The VEGA3000 UltraLite is a perfect, cost effective device to enhance your payment system.
- EMV Contactless Level 1
- PCI PTS v 5.x
- MasterCard PayPass
- Visa payWave
- JCB (J/Speedy)
- American Express (Express pay)
- EMC, TQM, UL, CE, FCC, BSMI, RoHS
| DEVICE | DESCRIPTIONS |
| Processor | ARM11, 32 bits high performance secure Microprocessor, @ 400MHZ |
| Memory |
Internal Memory: Flash: 128 MB DDR RAM: 64 MB |
| Display | 2.4” TFT LCD 240(RGB) X 320 with Backlight |
| Card Readers |
SAM Card: 4 SAM Contactless: ISO 18092 NFC & Mifare® & Sony® Felica, ISO 14443 Type A, B Certified, Working frequency 13.56 MHZ |
| Crypto | TRNG, DES, T’DES, AES, RSA, MK/SK, DUKPT, T’DUKPT |
| Keypad |
Standard 15 keys EMV keypad 3 function keys Backlight keys |
| Communication Interface |
RS232: (Communication speed: up to 115200bps) USB: USB2.0 (Full Speed, 12Mbps) |
| Indicator | 4 LED’s & Audio Buzzer |
| Power | DC 5V/1A |
| Certifications |
Contactless EMV L1, TQM, PCI PTS, Visa payWave, MasterCard PayPass, AMEX ExpressPay, JCB J/Speedy, UnionPay UICS, Discover D-PAS. Safety: CE, FCC, BSMI, RoHS. |
