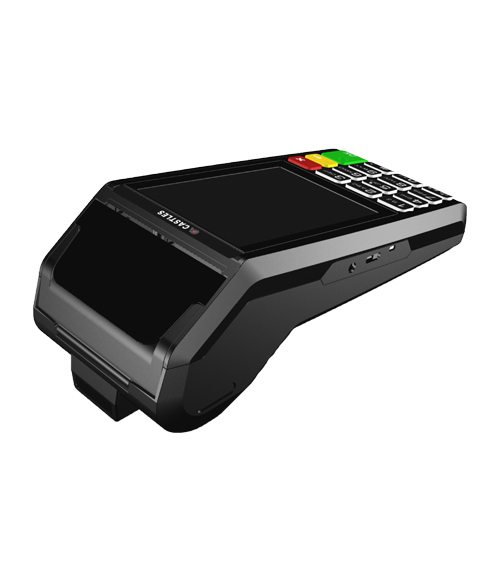

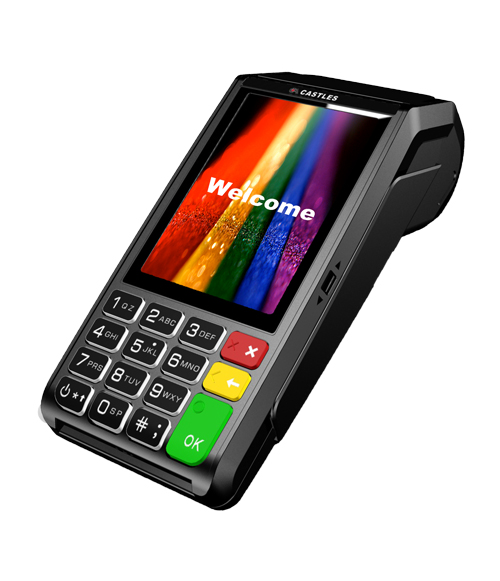

Castles Technology’s newly designed VEGA3000 Mobile 2 device gives you mobile capability for your business. VEGA 3000 Mobile 2 offers options of Wi-Fi, UMTS, GPRS, CDMA, Bluetooth and USB communications and also accepts all payment types -magnetic stripe, contact, contactless and barcode scanner. VEGA 3000 Mobile 2 is an ideal, secure, reliable device to mobilize your payments
- Mass Storage Support
- High Security CPU (ARM11, 32 bits; 400MHz)
- 2.4” TFT LCD & 3.5” TFT LCD with PCT touch pad
- Various Communication Interface
- Functional (Full multi-application capability)
- Open architecture Linux Platform
- Dual SIM
- Easy-to-use and secure (PCI PED approved PIN pad)
Castles Technology’s newly designed VEGA3000 Mobile 2 device gives you mobile capability for your business. VEGA 3000 Mobile 2 offers options of Wi-Fi, UMTS, GPRS, CDMA, Bluetooth and USB communications and also accepts all payment types -magnetic stripe, contact, contactless and barcode scanner. VEGA 3000 Mobile 2 is an ideal, secure, reliable device to mobilize your payments.
- PCI PTS 5.X
- EMV 4.X Level 1 & 2
- MasterCard PayPass
- Visa payWave
- JCB (J/Speedy)
- American Express (Express pay)
- EMC, UL, CE, FCC, BSMI, RoHS
| DEVICE | DESCRIPTIONS |
| Processor | ARM11, 32 bits high performance secure Microprocessor, @ 400MHZ |
| Memory |
Internal Memory: Flash: 128 MB DDR RAM: 64 MB (Up to 256 MB/ 128 MB) Extension Memory : Micro SD Socket up to 32GB |
| Display |

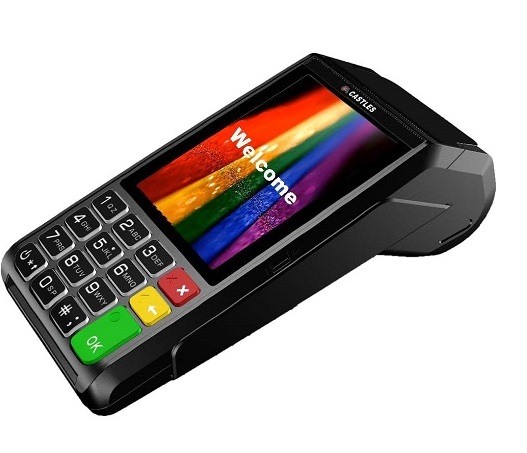

2.4” TFT LCD 240(RGB) X 320 with Backlight, 3.5” TFT 320X480 Color Display, with PCT Touch panel |
| Card Readers |
Magnetic Strip: : ISO 7810, 7811 & 7813 Triple track, Bi-Directional Smart Card: : : 1.8V/3V/5V smart card, ISO 7816 Class A,B and C Contactless: : ISO 18092 NFC & Mifare® & Sony® Felica, ISO 14443 Type A, B Certified, Working frequency 13.56 MHZ |
| SAM | 2 SAM slots |
| Crypto | TRNG, DES, T’DES, AES, RSA, MK/SK, DUKPT, T’DUKPT |
| Keypad |
Up and Down navigator Standard 15 keys EMV keypad 6 programmable function keys Backlight keys |
| Communication Interface |
3G (Dual SIM) 4G /(Optional) RS232: (Communication speed: up to 115200bps) USB: USB2.0 (Full Speed, 12Mbps) |
| Indicator |
LED: 4 LEDs Audio: Buzzer |
| Printer |
Thermal Type: Paper Width 57mm, Paper roll diameter: 40mm Printer Speed: 100mm/sec (+25 Line/Sec) |
| Power |
Power Adapter: 5V/2A Battery: Li-ion 3100mAH |
| Dimensions |
170.35mm(L) X 78.39mm(W) X 59.97mm(H) |
| Weight | 345g |
| Base Unit (Optional) |
USB: USB2.0 (Full Speed) 3X RS232: (Communication speed: up to 115200bps) Modem:Built-in V.90 bis Fast Connect Modem and Support Sync HDLC Ethernet (RJ45 port): 10/100 Ethernet |
| Certifications |
Security & Payment: PCI PTS|EMV L1 L2|MC-PTS|TQM|PBOC L1 L2|PayWave|PayPass|AMEX|JCB. Safety, EMC: CE|FCC|BSMI|RoHS |
